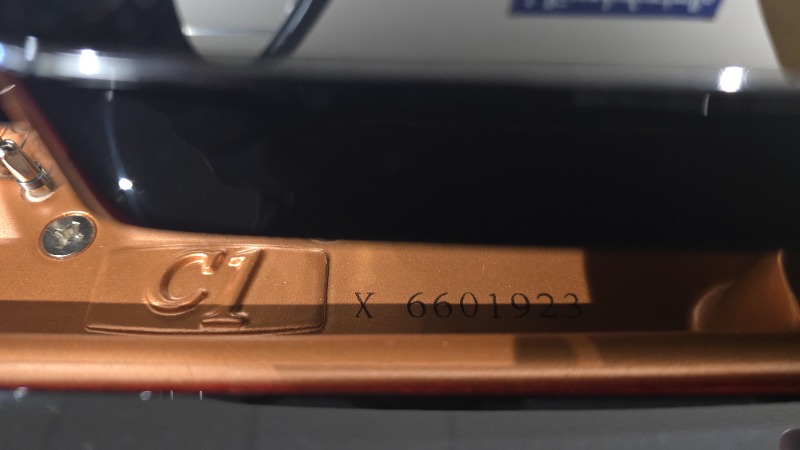

Yamaha DC1X 6601923

Crafted by Yamaha in Kakegawa, Japan

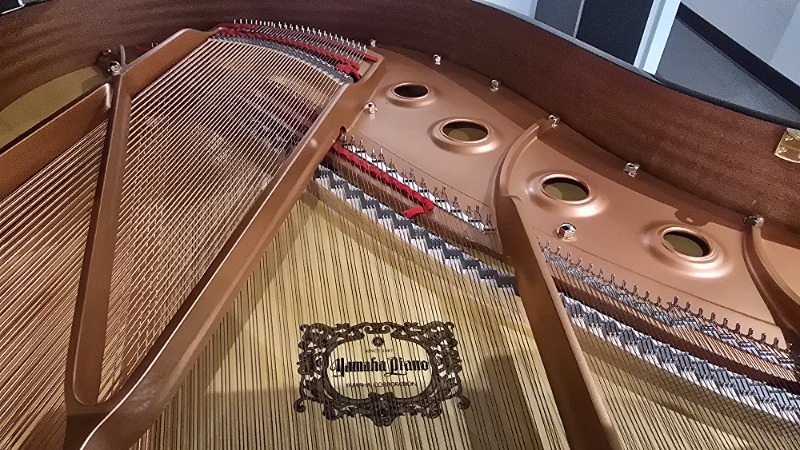

Soundboard: Spruce
Soundboard Ribs: Spruce
Back Posts: 3 – Merkus Pine
Bridge Construction: Two-piece separated
Frame: V-Pro Vacuum Shield Mold Process
Tone Collector: Yes
Key Material: Seasoned spruce
White Key surfaces: Ivorite™
Black Key surfaces: Wood composite
Fallboard: Soft-close
Lid lock: Yes
Pedal: Shift/Sostenuto/Damper
Caster: Single-wheeled solid brass casters
Weight: 638 lbs (290 kg)

Fully integrated record and playback system
Recording formats: Standard MIDI, Audio WAV, Audio Sync, Video Sync
Supported file formats: Standard MIDI, MP3, WAV
500 built-in songs
Available songs: 9,000
Streaming radio service with 30+ channels
Streaming video service (free with radio subscription)
128 levels of keying velocity
128 levels of key release velocity
128 levels of incremental pedaling
Damper and shift/soft pedal movement reproduction
Non-contact optical sensor system
Key Sensor type: Continuous grayscale
Hammer Sensor type: Shutter type
Damper and Shift/Soft Pedal Sensor type: Continuous grayscale
Sostenuto Sensor type: On/Off detection system (grand models only)
DSP servo feedback system: Standard (key and pedal)
Auto-calibration and real-time auto-adjusting playback
Quiet Mode and SILENT Mode with motorized muting system
16 playable digital voices (binaural CFX Concert Grand for headphones)
480 ensemble voices with 12 Drum Kits
256-note polyphony
Compatible storage media: USB Flash Memory (up to 128GB)
MIDI connectivity: 5-pin MIDI IN/OUT (grand models only), USB TO HOST
Audio connectivity: Analog audio IN x 2, analog audio OUT x 4, digital coax OUT (2CH)
Headphone connectivity: 1/8” mini stereo
Data connectivity: LAN, USB TO DEVICE x 3 (uprights x 2)
Integrated speakers: Yamaha MSP3 powered monitors x 2
Control integration: iOS/Android app, Mac/PC browser, MusicCast app, custom API
Available models: GB1K, GC1, GC2, C1X, C2X, U1, YUS1, YUS5
